Description of functions/solutions
- Part type detection based on camera scanning
- Manual recipe entry via HMI panel
- Implementation of information in the DMC code
- Error-proofing when matching parts
Activities performed
- PLC programming
- HMI programming
- Programming of camera system
- Assembly work
- Sensor installation and adjustment
DESCRIPTION OF THE SOLUTION

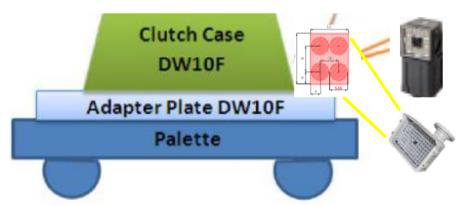

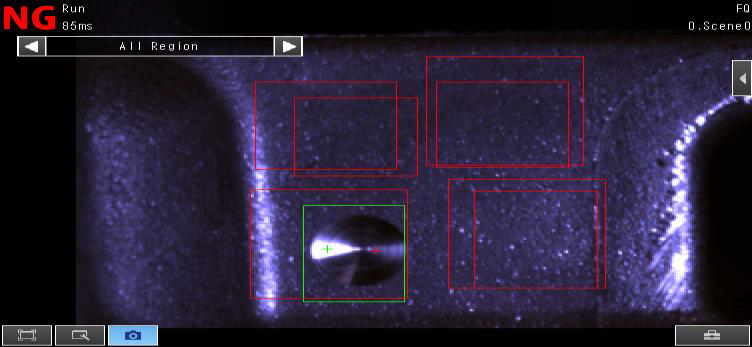

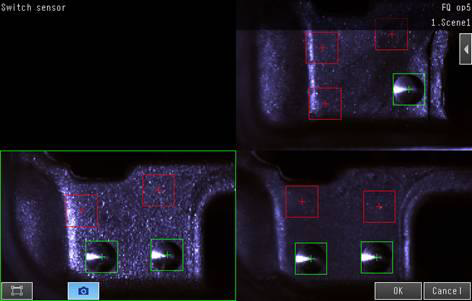

The part is scanned with a camera after loading. The combination of drilled holes on the part is observed.
When assembling, the second part A is differentiated by the distance sensor B.
APPLICATION AREAS
- Quality control
- Automatic line control
- Error-proofing
- Traceability
