Description of functions/solutions
- Slider and spring presence check
- Antenna type check, coil test
- Lubrication for housing, barrel and sensor
- Antenna clipping
- Marking of finished and tested product
Activities performed
- Mechanical design and implementation
- Electrical design and implementation
- Control system programming
- Visualisation programming
- Measurement and control (MaR)
DESCRIPTION OF THE SOLUTION
Main parts of the station
- button to start the cycle
- light gate
- pneumatic circuit
- control panel
- lubricant distribution
- nest for lubricating the housings
- nest for lubricating the sensor
- nest for lubricating the barrel
- main air inlet cap
- central stop
APPLICATION AREAS
- Automation
- Control systems (quality detection)
Nest for sensor lubrication:

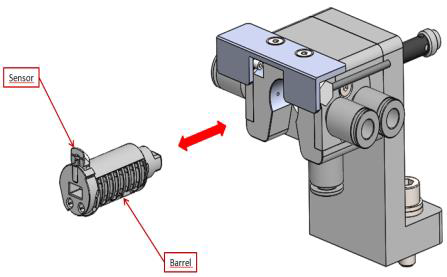

Nest for barrel lubrication:

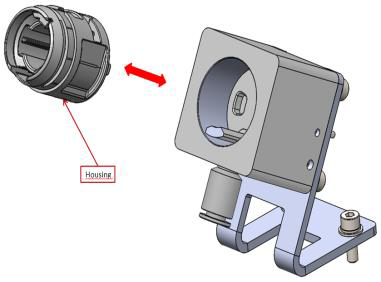

Nest for lubricating housings:
Station PA649-SCL:

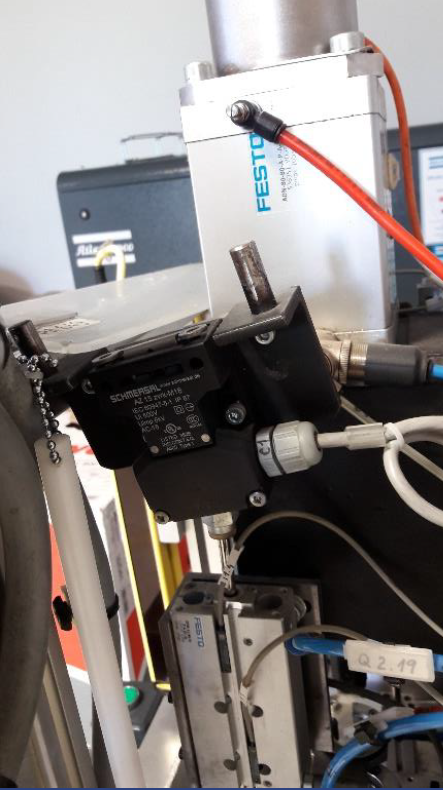

Safety Lock:
